观光电梯
一方天地 浑然天成
One natural of the world
与建筑，周围的环境融为一体，不仅成为建筑物的一部分，更为其添加一道移动的靓丽风景。

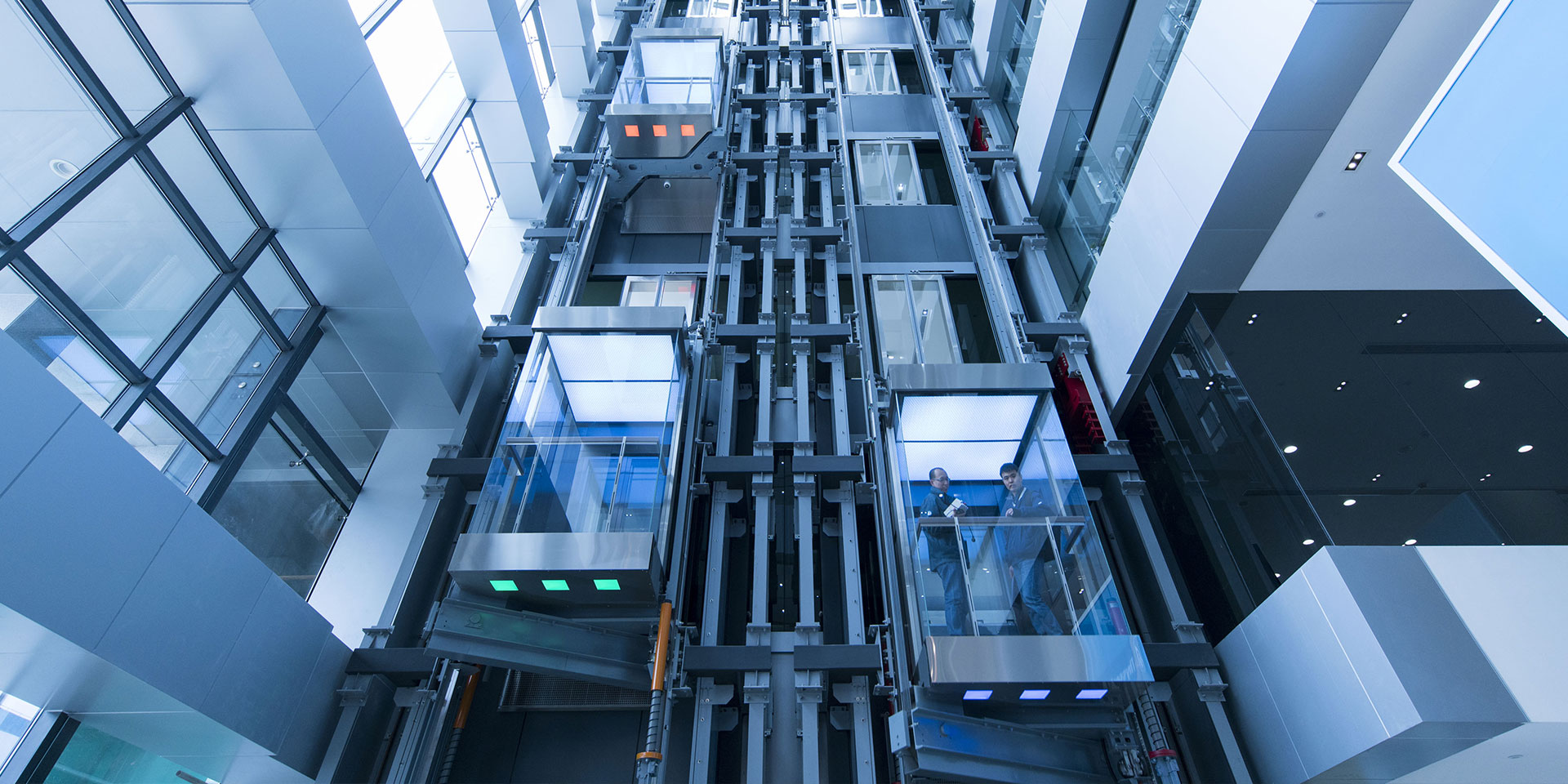

观光电梯玻璃钢结构不仅完美的展现了紧凑的空间和整体的美观。平稳舒适的乘坐感觉，多种角度的梯外景观，带给用户的是一份享受，一份新奇。

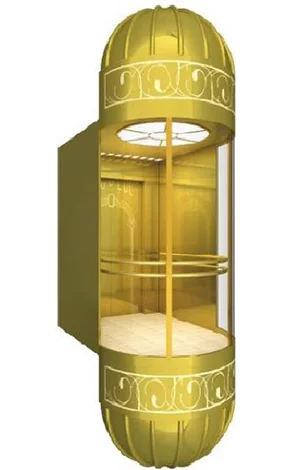

半圆型

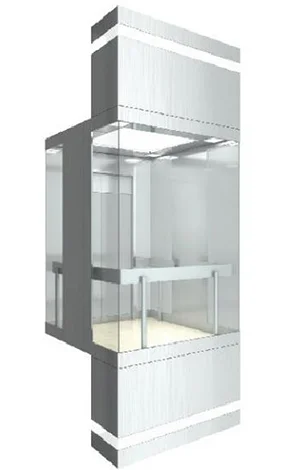

正方型
菱型
展望型

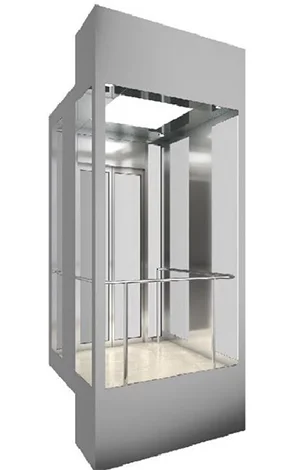

商超内观光电梯效果图
室外观光电梯效果图

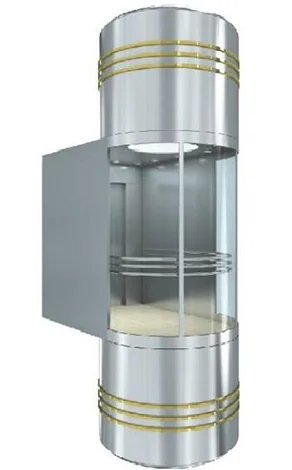

圆形观光电梯效果图
装潢配置
Decoration
土建图
Construction sketch
小机房观光电梯（半圆形）
| 额定载重(kg) Rated capacity |
乘客人数(人) Persons |
额定速度(m/s) Rated speed |
轿厢净尺寸(mm) Net size of car |
净门尺寸(mm) Net door size |
井道净尺寸(mm) Hoistway size |
机房尺寸(mm) Machine room size |
||
| 宽×深 CW×CD |
宽×高 DW×DH |
宽×深 SW×SD |
底坑深 PD |
顶层高 OH |
宽×深×高 MW×MD×MH |
|||
| 630 | 8 | 1 | 1200x1400 | 800x2100 | 2300x2100 | 1800 | 4800 | 2300x2200x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 800 | 10 | 1 | 1400x1550 | 800x2100 | 2500x2200 | 1800 | 4800 | 2500x2250x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 1000 | 13 | 1 | 1400x1800 | 900x2100 | 2500x2450 | 1800 | 4800 | 2500x2450x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 1250 | 16 | 1 | 1600x1800 | 1000x2100 | 2700x2500 | 1800 | 4800 | 2700x2500x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 1350 | 18 | 1 | 1600x1900 | 1000x2100 | 2700x2600 | 1800 | 4800 | 2700x2700x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 1600 | 21 | 1 | 1600x2200 | 1100x2100 | 2800x2900 | 1800 | 4800 | 2800x2900x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 2000 | 26 | 1 | 1900x2200 | 1100x2100 | 3000x2900 | 1800 | 4800 | 2800x3000x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
小机房观光电梯（菱形）
| 额定载重(kg) Rated capacity |
乘客人数(人) Persons |
额定速度(m/s) Rated speed |
轿厢净尺寸(mm) Net size of car |
净门尺寸(mm) Net door size |
井道净尺寸(mm) Hoistway size |
机房尺寸(mm) Machine room size |
||
| 宽×深 CW×CD |
宽×高 DW×DH |
宽×深 SW×SD |
底坑深 PD |
顶层高 OH |
宽×深×高 MW×MD×MH |
|||
| 630 | 8 | 1 | 1350x1250 | 800x2100 | 2400x1900 | 1800 | 4800 | 2350x1900x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 800 | 10 | 1 | 1350x1500 | 800x2100 | 2400x2150 | 1800 | 4800 | 2350x2150x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 1000 | 13 | 1 | 1600x1500 | 900x2100 | 2600x2150 | 1800 | 4800 | 2600x2150x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 1250 | 16 | 1 | 1800x1600 | 1000x2100 | 2800x2300 | 1800 | 4800 | 2800x2300x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 1350 | 18 | 1 | 1600x1900 | 1000x2100 | 2700x2600 | 1800 | 4800 | 2700x2700x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 1600 | 21 | 1 | 1900x1800 | 1100x2100 | 3000x2500 | 1800 | 4800 | 3000x2500x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 2000 | 26 | 1 | 1900x2200 | 1100x2100 | 3000x2900 | 1800 | 4800 | 2800x3000x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2.6 | 2206 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
小机房观光电梯（矩形）
| 额定载重(kg) Rated capacity |
乘客人数(人) Persons |
额定速度(m/s) Rated speed |
轿厢净尺寸(mm) Net size of car |
净门尺寸(mm) Net door size |
井道净尺寸(mm) Hoistway size |
机房尺寸(mm) Machine room size |
||
| 宽×深 CW×CD |
宽×高 DW×DH |
宽×深 SW×SD |
底坑深 PD |
顶层高 OH |
宽×深×高 MW×MD×MH |
|||
| 630 | 8 | 1 | 1350x1150 | 800x2100 | 2200x1750 | 1800 | 4800 | 2100x2100x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 800 | 10 | 1 | 1350x1400 | 800x2100 | 2200x2000 | 1800 | 4800 | 2300x2100x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 1000 | 13 | 1 | 1600x1400 | 900x2100 | 2500x2000 | 1800 | 4800 | 2500x2100x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 1250 | 16 | 1 | 1800x1500 | 1000x2100 | 2700x2100 | 1800 | 4800 | 2700x2200x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 1350 | 18 | 1 | 1800x1650 | 1000x2100 | 2700x2250 | 1800 | 4800 | 2700x2400x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 1600 | 21 | 1 | 2000x1700 | 1100x2100 | 2900x2300 | 1800 | 4800 | 2900x2400x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
| 2000 | 26 | 1 | 1900x2200 | 1100x2100 | 2800x2800 | 1800 | 4800 | 2800x2800x2400 |
| 1.5-1.75 | 2000 | 5000 | ||||||
| 2 | 2200 | 5200 | ||||||
| 3 | 2400 | 5400 | ||||||
无机房观光电梯（半圆形）
| 额定载重(kg) Rated capacity |
乘客人数(人) Persons |
额定速度(m/s) Rated speed |
轿厢净尺寸(mm) Net size of car |
净门尺寸(mm) Net door size |
井道净尺寸(mm) Hoistway size |
机房尺寸(mm) Machine room size |
||
| 宽×深 CW×CD |
宽×高 DW×DH |
宽×深 SW×SD |
底坑深 PD |
顶层高 OH |
宽×深×高 MW×MD×MH |
|||
| 630 | 8 | 1 | 1200x1400 | 800x2100 | 2100x2100 | 2000 | 5600 | |
| 1.5-1.75 | 2200 | 5800 | ||||||
| 800 | 10 | 1 | 1400x1550 | 800x2100 | 2300x2250 | 2000 | 5600 | |
| 1.5-1.75 | 2200 | 5800 | ||||||
| 1000 | 13 | 1 | 1400x1800 | 900x2100 | 2400x2450 | 2000 | 5600 | |
| 1.5-1.75 | 2200 | 5800 | ||||||
| 1250 | 16 | 1 | 1600x1800 | 1000x2100 | 2600x2500 | 2000 | 5600 | |
| 1.5-1.75 | 2200 | 5800 | ||||||
| 1350 | 18 | 1 | 1600x1900 | 1000x2100 | 2700x2600 | 2000 | 5600 | |
| 1.5-1.75 | 2200 | 5800 | ||||||
| 1600 | 21 | 1 | 1600x2200 | 1100x2100 | 2700x2900 | 2000 | 5600 | |
| 1.5-1.75 | 2200 | 5800 | ||||||
| 2000 | 26 | 1 | 1900x2200 | 1100x2100 | 3000x2900 | 2000 | 5600 | |
| 1.5-1.75 | 2200 | 5800 | ||||||
